Discover the power of our trailer dimensions tool, designed to assist you in efficiently planning and executing your logistics for large projects. With this user-friendly tool, you can easily access essential trailer dimensions and make informed decisions for your cargo requirements.

Variations in length and height are common, but width is more standardized. The standard dimensions of semi-trailers are:

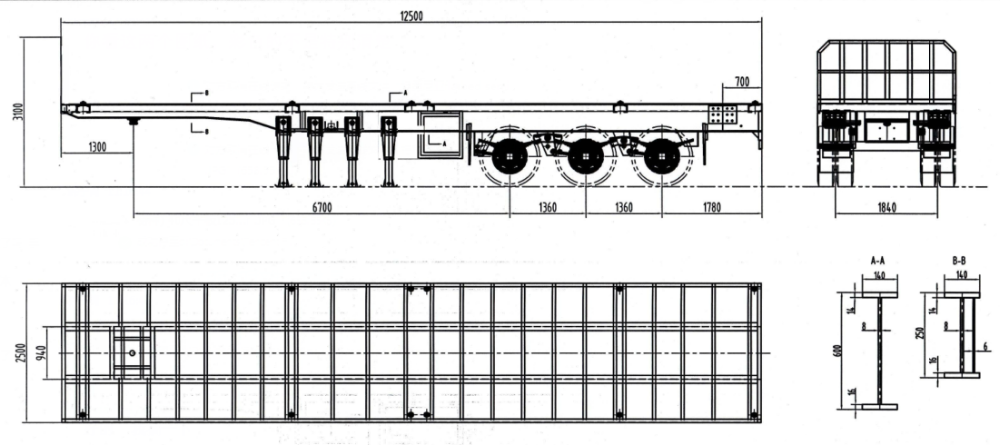

Container Flatbed Trailer dimensions and drawings

SF Semi Trailer flatbed trailer is a kind of trailer whose design is suitably made to carry bulk cargo and containers between shipping facilities and terminals. By simple definition, this is a long flat platform of either 20ft, 40ft, 48ft or 53ft length. Flatbed trailer is usually used to transport 20ft or 40ft containers, they are mainly used for container transportation supporting ships, ports, shipping lanes, highways, transit stations, bridges, tunnels, and multimodal transport.

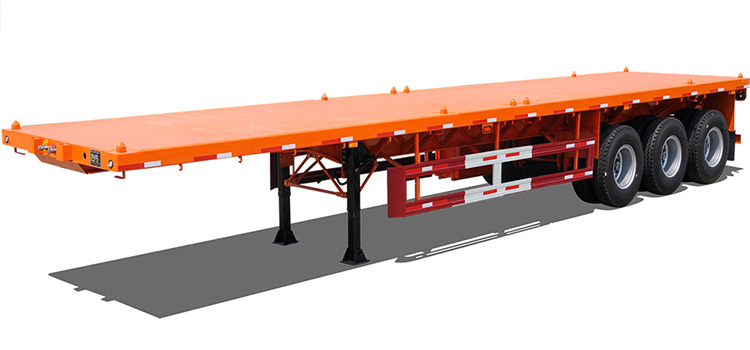

3 Axle flatbed trailer

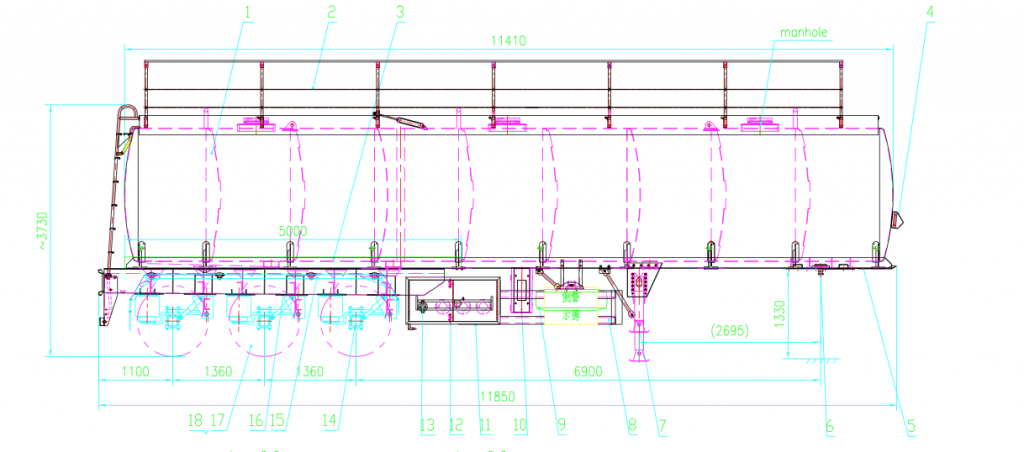

Fuel Tanker Trailer and drawings

The Fuel tanker trailer is designed for the stable and secure transportation of fuels and other liquid. Common tanker model includes 36CBM, 42CBM, 52CBM, 60CBM, etc. The tanker body adopts 6mm thick steel plate with 3~5 compartment according to customers requirement. Steel, stainless steel or aluminum are all available based on customers’ needs. The self bearing tank is of maximum shape with lowest centre gravity. The drainage has two options: gravity drainage and pump drainage. Other components include: ladders, foldable handrail, manhole, valves, etc, which can all be customized or recommended by us. All tankers will be inspected of leakage before shipment, calibration chart will also be provided.

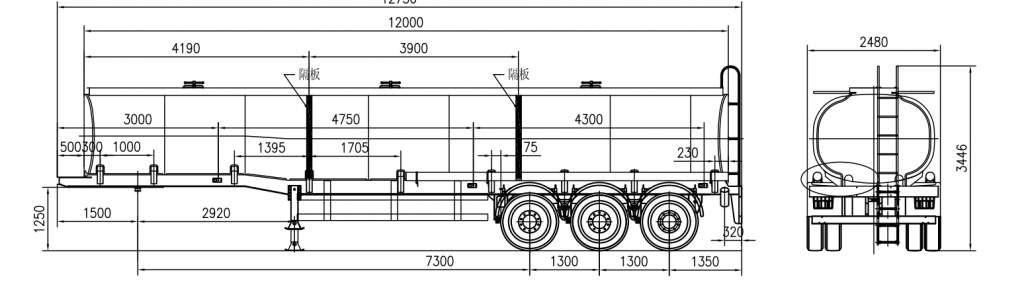

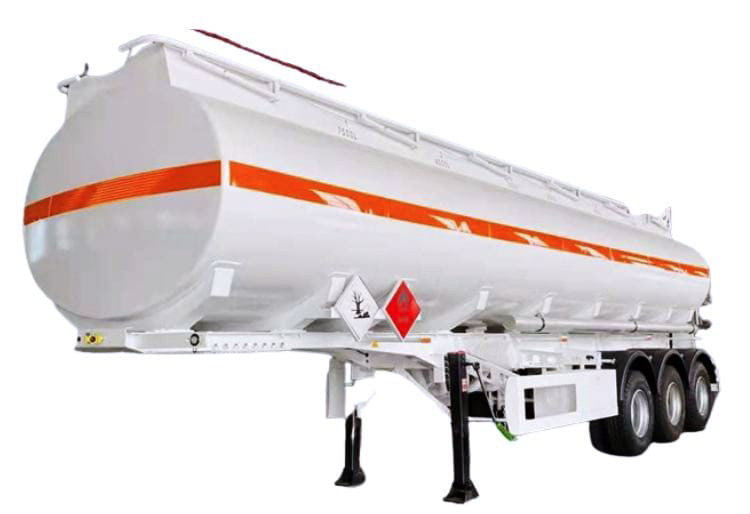

3 Axle 40000liters fuel tanker trailer

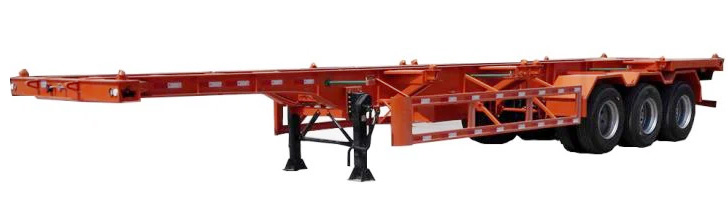

Container Chassis Trailer dimensions & drawings

SF Semi Trailer Container chassis trailer is used to transport containers, and container chassis trailers have different shapes and sizes. Sea Container chassis trailer can be divided into two types: common 40ft Container chassis trailer and special Container chassis trailer. SF Semi Trailer common Container chassis trailers can be customized to 20 ft Container chassis trailer, 40 foot Container chassis trailer, 45ft Container chassis trailer, 53 feet Container chassis trailer. We also provide customers with different options: 2 axles gooseneck container trailers, 3 axles shipping container delivery trailer, 4 axles intermodal container chassis, airbag suspension, spring steel suspension.

Oil Tank Semi Trailers

3 Axle 40000liters fuel tanker trailer

Aluminum Tanker Trailer and drawings

The aluminum tanker trailer is the updated version of normal fuel tanker trailer. The main tanker body is made from aluminum plate instead of steel, which will increase the total weight of the trailer. The initial cost of this tanker looks higher than normal steel tanker trailer, however, in a long term view, aluminum tanker will save operation cost in a very high scale due to its light weight, which will doesn’t need so many fuel as those steel ones do. The chassis can be steel type or aluminum type. Pump drainage or gravity drainage can be used to discharge the fuel. Other components include: lipstick, liquid level indicator, fire extinguisher, vapor recovery system, vent valve, discharge valve, etc.

Oil Tank Semi Trailers
Oil Tank Semi Trailers
Aluminum Tanker Trailer

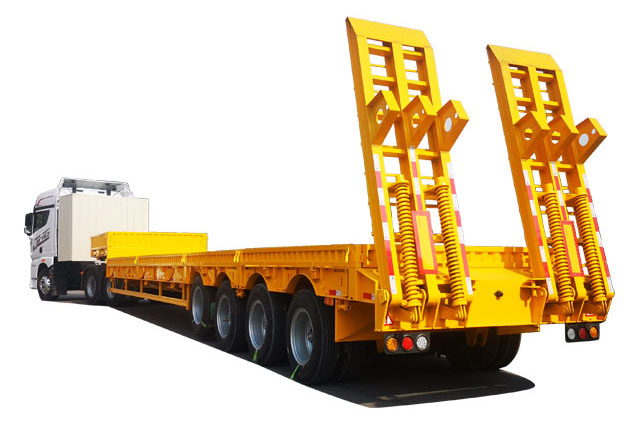

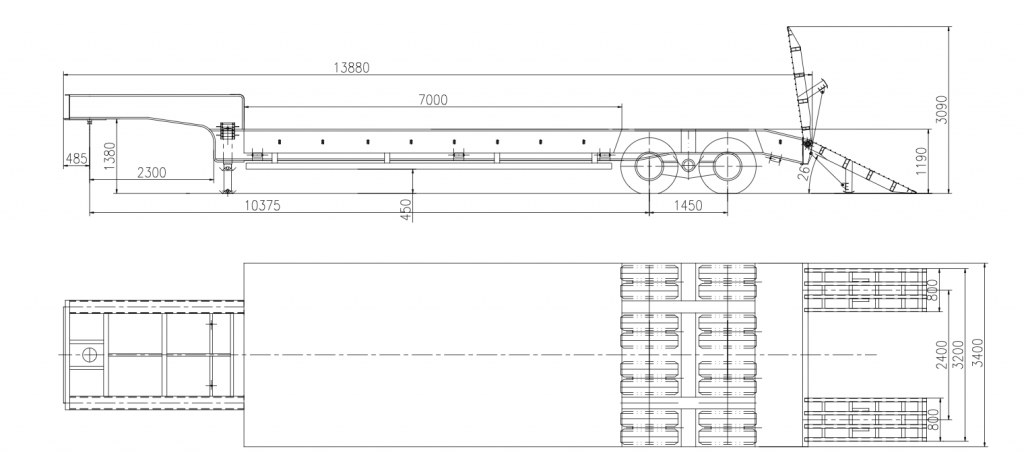

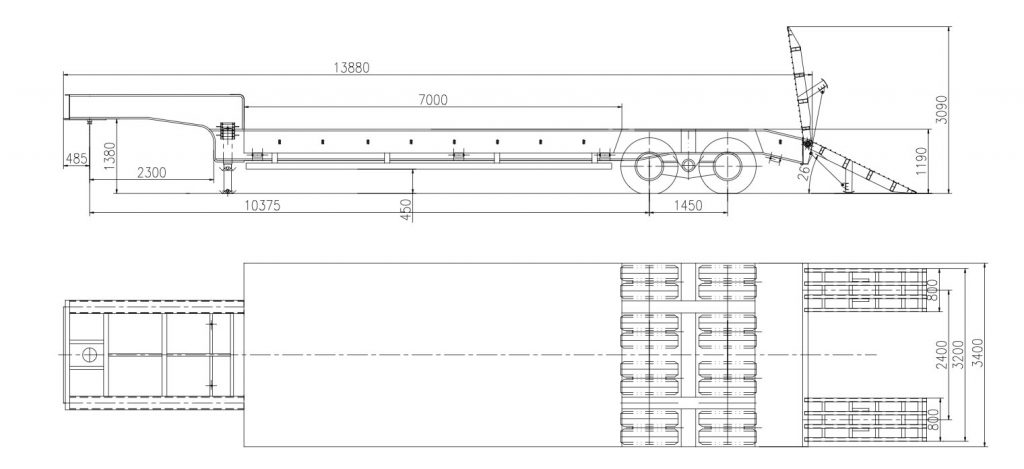

Lowboy Trailer Manufacturers / Lowbed Trailer and drawings

We are one of the leading professional lowboy trailer manufacturers, our featuring low bed trailer for sale are welded by longitudinal beam, side beam and crossbeam. Steal grade Q460 which will not deform until intension reaches 460Mpa. This kind of steel has features of high strength, various temperature ductility, low yield ratio and high elongation. Axles of the lowboy is non driving type, hubs, drum brakes, rims and tires are fixed on each side. Bogie are provided with balance suspension which faciliates the steering during road duty, during which all axles match with the bumping of roads, balancing the loads on the lowboy deck. It’s an ideal choice for heavy load duty, especially military forces, in tough road condition.

Oil Tank Semi Trailers
service
Lowboy Trailer Manufacturers / Lowbed Trailer for Sale
