2 Axle 40FT Container Chassis Trailers

Type: 2axle 40ft skeletal semi trailer
Delivery: 7-25 days
Application: transport container
Load capacity: 20-50 ton


Container chassis trailers, also named skeleton semi trailer, container chassis trailer etc. Generally used for transport ISO container in port, ship yard, routes, bridges, tunnels, transfer station, supporting multimodal transport logistics system. 40ft long fit 4 to 14 sets container locks suitable for 10, 20, 40 dry container, tank container and reefer container etc.

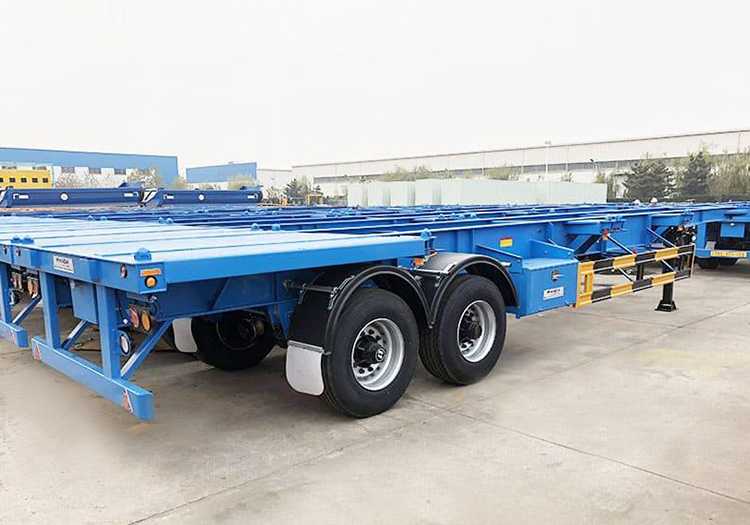

2 Axle 40FT Container Chassis Trailers

2 Axle 40FT Container Chassis Trailers | Trailers for sale in south africa

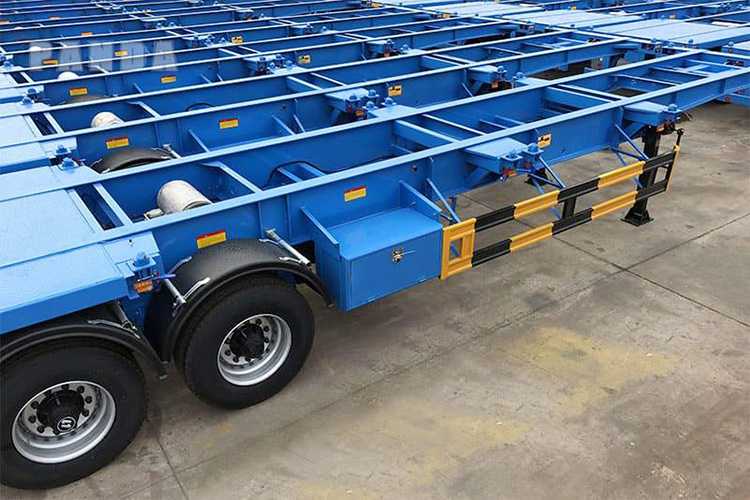

2 Axle 40FT Container Chassis Trailers

2 Axle 40FT Container Chassis Trailers | Trailers for sale in south africa


Container chassis trailer is generally used in ports, ships, roads, routes, bridges, tunnels, and transfer stations, supporting multimodal transport logistics systems.

The skeleton trailer is mainly used for medium and long-distance transportation and is generally used to transport containers. According to your needs, we provide 4 to 14 sets of locks.


Main beam:

High-strength Q345 or T700 steel material welded by submerged arc

Twist Lock:

ISO standard lock suitable worldwide container, additional protection switch avoid mistake operate


BPW, FUWA, and PD brands optional support longer working without maintenance


Famous brand tire optional, size customized


Quality steel or alu rim customized


Heavy duty mechanical suspension with equalizers quality spring

Brake system:

Dual line air brake system, T30/30 chamber and WABCO relay emergency valve, ABS and EBS system optional

Brake Pipe:

Nylon wire pipe more safety for high-pressure braking

2 Axle 40ft container chassis trailer specification

Dimension 12500*2500*1550mm
Skeletal trailer weight 6000Kg
Main Beam Section 500mm height Q345/T700 material
Twist Lock 12/14 set ISO Standard
Suspension Mechanical / Air / Bogie
Axle 2 axles BPW/FUWA/PDME etc
Rim 8/12 pieces 9.0-22.5 Steel/Aluminum
Tire 8/12 pieces 12R22.5 Bridgestone/Triangle/Linglong etc
Brake Valve WABCO
Brake Chamber 4/6sets T30/30
Brake Pipe Nylon Wire Pipe
Landing Gear 28T Lifting JOST/YAHUA
Kingpin 2(50mm)/3.5(90mm) JOST Bolting Type
Lights 12v/24v LED Waterproof

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
