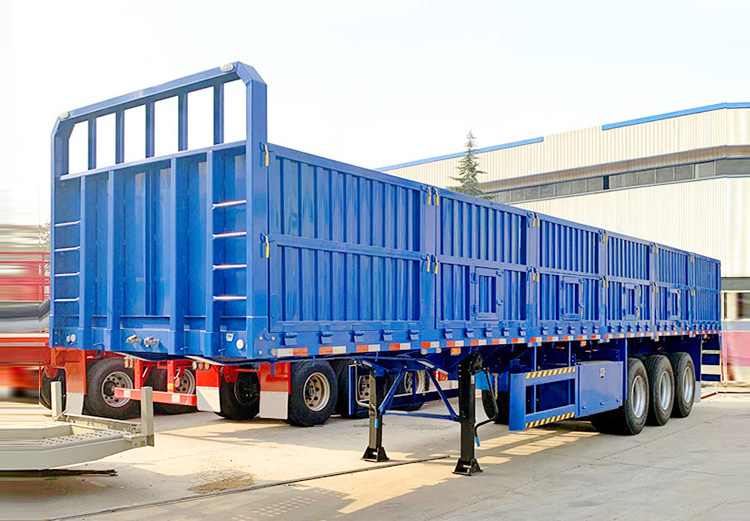

40ft Side Wall Semi Trailer Truck

Verall Dimension: 12500mm*2500mm*2700mm
Axles: 3×13 Tons
Tires: Optional
Wheel base:7800mm+1310mm+1310mm
Removable Side Wall Height:600 mm. With 12 pieces of container locks
Box Body:Floor steel sheet 3mm, side wall steel sheet 2mm


40FT Container Semi-trailer with Removable Side Wall

Main Description
Overall Dimension 12500 mm * 2500 mm * 2700 mm
Tare Weight 9000kg Pay Load 40 ton
King Pin Setting 1460 mm Rear Overhang 1930 mm
Track 1840 mm Loading surface height 1650 mm
Wheel base 7800 mm + 1310 mm + 1310 mm
Removable Side Wall Height 600 mm. With 12 pieces of container locks
Box Body Floor steel sheet 3mm, side wall steel sheet 2mm
Running Gear
Suspension Mechanical suspension with 10-pcs leaf spring
Tires 315 / 80R 22.5, 13 units ( 12R 22.5, 12.00 R20 are optional )
Axles FUWA Brand, 3 axles, load capacity 13T per axle
Brakes Dual lines pneumatic brake system; T30 / 30+ T30 air chamber; parking brake
Under Frame
Main Beam The height of the beam is 500 mm, upper plate is 14mm, down plate is 16mm, middle plate is 8mm
Cross Beam Mild Alloy Q235B
King Pin Size: 3.5 or 2.0
Landing Gear Single side operation
Electrical & Paint
Lights & Reflectors Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light
Wiring 24V, 6 lines
Air Connector ISO standard air connector, 24V 7 pin plug socket
Paint Sand blasting before painting, 2 coat of anti-corrosive primer, 2 coats of finish urethane paint, Color upon request
1 Tool Box, 2 Spare Tire Racks
