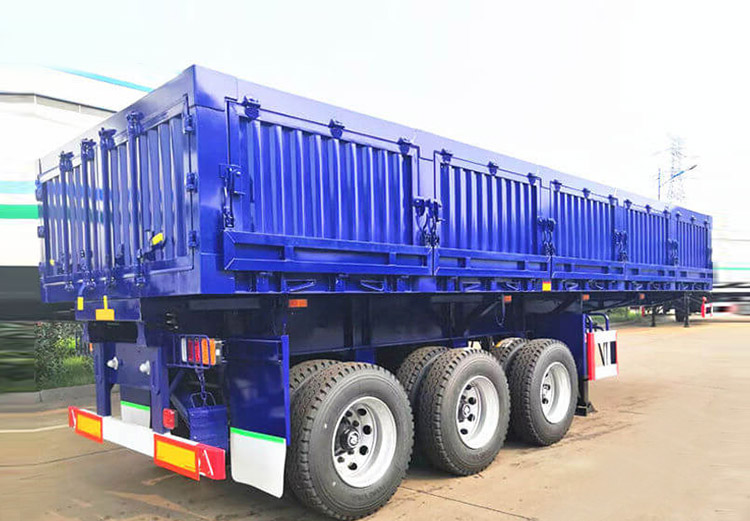

50t Dump Semi Trailer Vehicle

Dimension: 12.5*2.5*2.6m(outside)
Capcaity: 50 tons or customized
Axle: 3 axles BPW or FUWA
Suspension: Mechanical suspension
Landing Gear: JOST brand
King Pin: 2.0 or 3.5 inch
Tire: 12R22.5; 315/80R22.5


Side dump trailer as known as side dump semi trailer, side tipper trailer, the structure includes chassis, box, and lifting system, work by PTO supply oil to the cylinder, lifting box till to design angle, cargo slide out, improve unloading efficiency.
Side dump trailer widely used in sandstone plant, construction site and mine, transport sand, gravel, earthwork and mining.

Side Dump Trailer Specifications
Outside Dimension 12500x2500x2600mm, 50cubic meters
Payload Max.50T capacity
Lifting System “5+1” oil cylinder
Main Beam Q345B carbon steel, ‘H” type
Frame Beam(Heavy duty) Upper and lower plate is 14mm and 16mm, Double middle is 8 mm. Height is 500 mm
Box thickness Bottom plate:8mm Side plate:6mm
Axle 3 axles 13tons BPW or FUWA
Landing Gear JOST brand
King Pin 2.0 or 3.5 inch
Suspension Mechanical suspension reinforced type
Leaf Spring(Strength) 90mm(W)*16mm(T)*10 Layer
Tires 12R22.5, 315/80R22.5
Color/Logo By customer demand

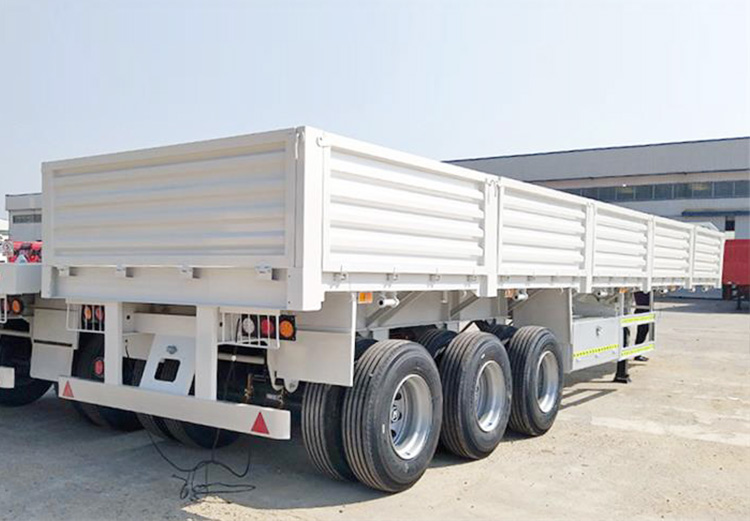

1. Our side dump trailer use straight steel body longer life, durable box side 3mm, floor 4mm for coal, grain transport.
2. High grade steel frame chassis stronger for side dump trailer, thicken main beam top, bottom and middle beam.
3. Good quality side dump trailer lifting system safer and durable, “5+1” type oil cylinder perfect side dumping cargo.

50t Dump Semi Trailer Vehicle

Our side dump trailer engineered for the toughest jobs, with rugged suspensions, long-haul mine-rated tires, and heavy frames that stand up to loading and unloading, strong box for your transport business.Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
